The gold standard and most powerful 213 nm solid-state laser
The ESL213 is an affordable yet zero-compromise instrument suitable for a wide range of applications. A perfect complement to any ICP, ICPMS, noble gas or stable isotope mass spectrometer.
Robust, high-performance laser ablation in a bench top format that meets all but the most demanding applications.
Features & Benefits:
- 213 nm Nd:YAG laser, designed and built by ESL specifically for laser ablation
- Homogenized and attenuated at 1064nm for a flat top beam with fine fluence control
- Huge spot size range with 1 μm steps
- Driven via ActiveView 2 – the world’s most powerful LA software
Specifications:
- Wavelength: 213 nm
- Repetition Rate: 1 – 20 Hz
- Fluence: 25 J/cm2 at the sample surface
- Spot sizes: 4 – 250 microns
ESL213 Data & Image Mapping
Rat Brain
Sample Type: BiologyAnalyte: Carbon
Rat Brain
Sample Type: BiologyAnalyte: Copper
Rat Brain
Sample Type: BiologyAnalyte: Iron
Rat Brain
Sample Type: BiologyAnalyte: Zinc
Rat Kidney
Sample Type: BiologyAnalyte: Carbon
Rat Kidney
Sample Type: BiologyAnalyte: Copper
Rat Kidney
Sample Type: BiologyAnalyte: Iron

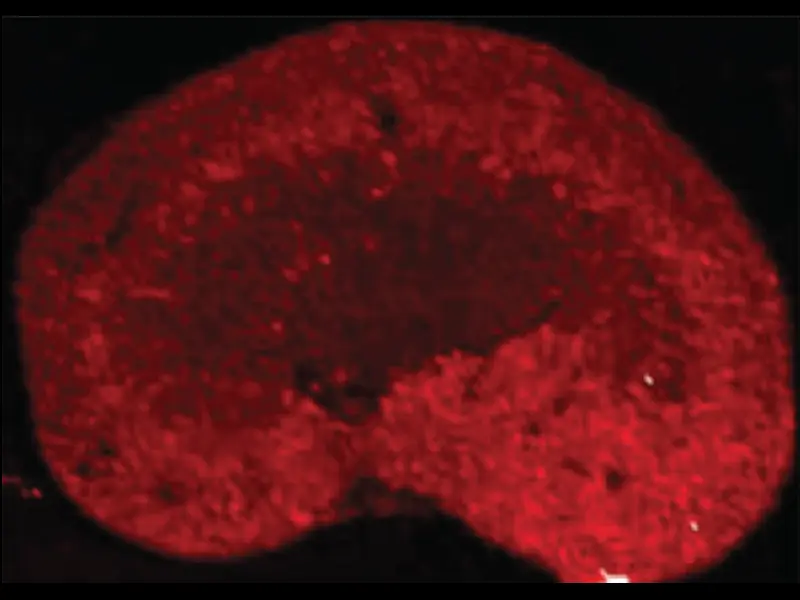

Rat Kidney
Sample Type: BiologyAnalyte: Zinc
Rat Kidney - 10 nm
Sample Type: BiologyAnalyte: Iridium
Rat Kidney - 80 nm
Sample Type: BiologyAnalyte: Iridium
Rat Liver
Sample Type: BiologyAnalyte: Carbon
Rat Liver
Sample Type: BiologyAnalyte: Copper
Rat Liver
Sample Type: BiologyAnalyte: Iron
Rat Liver
Sample Type: BiologyAnalyte: Zinc
Configurations:
- Output Pulse Energy ≥ 6mJ
- Primary viewing system: optical magnification 15X to 60X, Optical Resolution＜2μm
- Secondary viewing system: 25mm field of macro viewing
- Equipped with Touch LCD navigation screen: viewing area ≥ 25mm x 19mm
Applications:
- Forensics
- Geochemistry/discovery
- Trace Element Analysis
- Battery
- Purity testing
- Material characterization
- Bulk Analysis
- Gemology
Markets:
- Environmental
- Geological
- Forensic
- Medical
- Mining
- Electronic
- Manufacturing (metals/glass/plastics)
Additional Laser Ablation Products
imageBIO266
The first instrument designed for the single task of bioimaging.
imageGEO193
Experience the flexibility of high resolution geochemical imaging and precise measurement in a single system.
ESL193HE
High energy excimer-based laser ablation system ideal for opaque and highly transmissive materials alike.
Artifact
Extra-large additional laser ablation chamber for application flexiblity and optimization of specialized applications.
MicroMill2
A microsampling device designed for high resolution milling to recover sample powder for chemical and isotopic analysis.

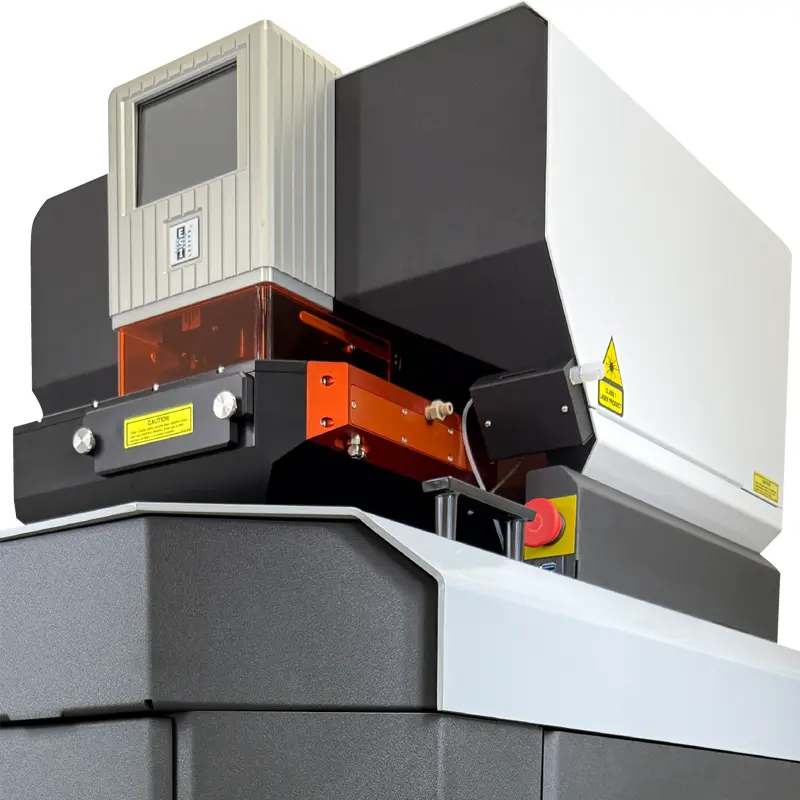

ESLfemto
